Calvin Beal/ SW Boatworks/ Composite Yacht Lobster Boat Sportfish

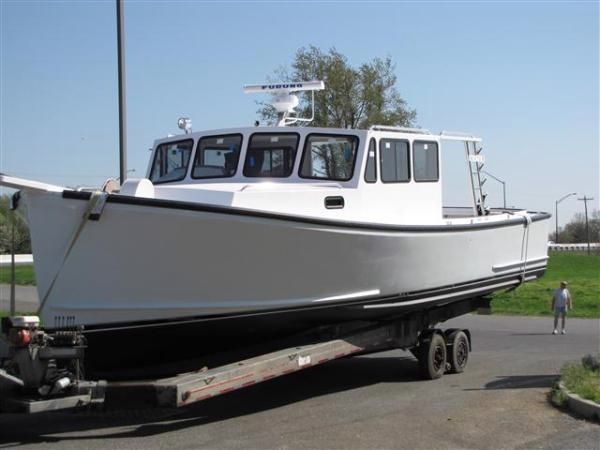

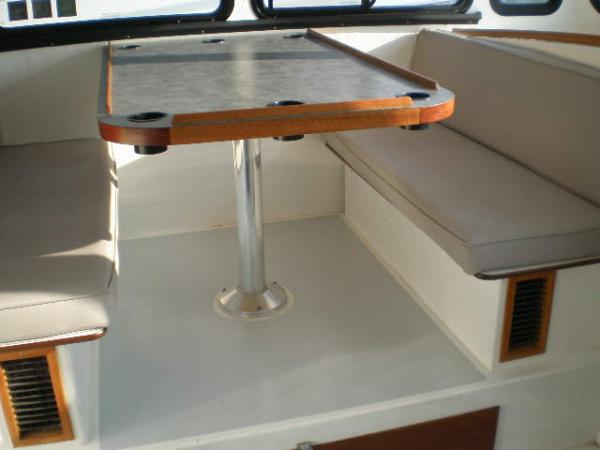

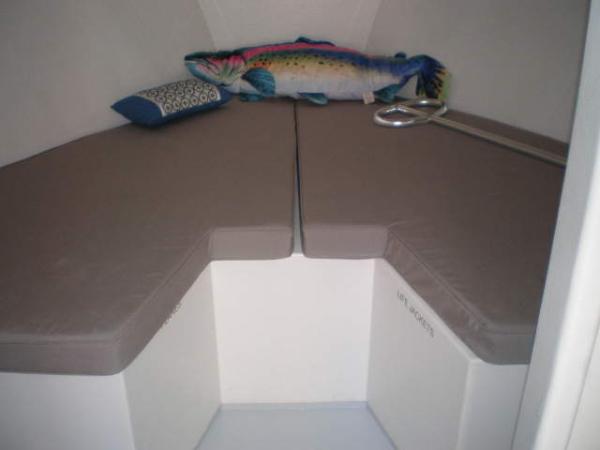

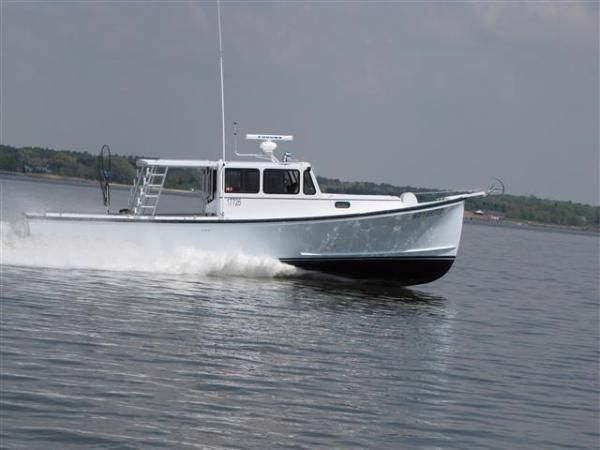

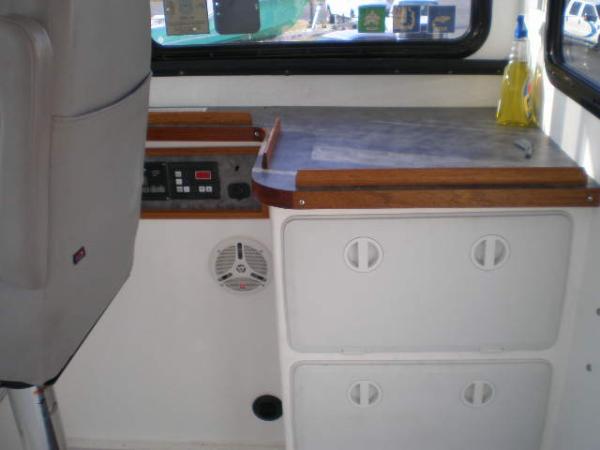

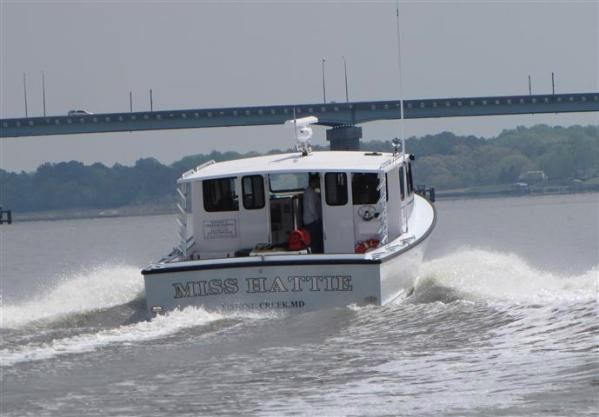

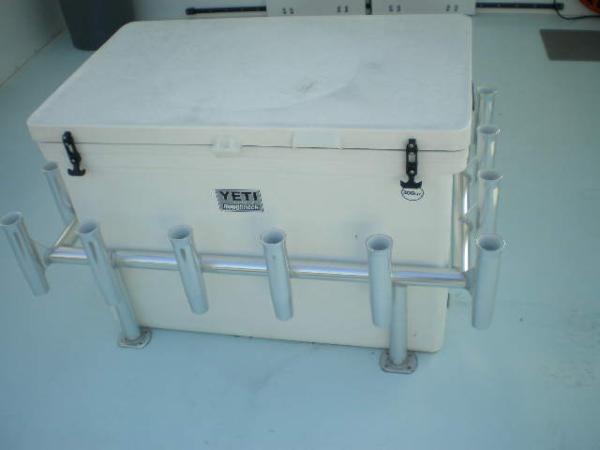

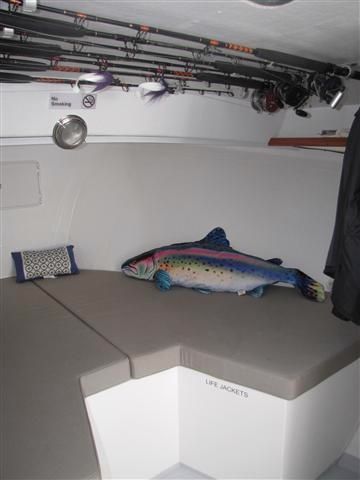

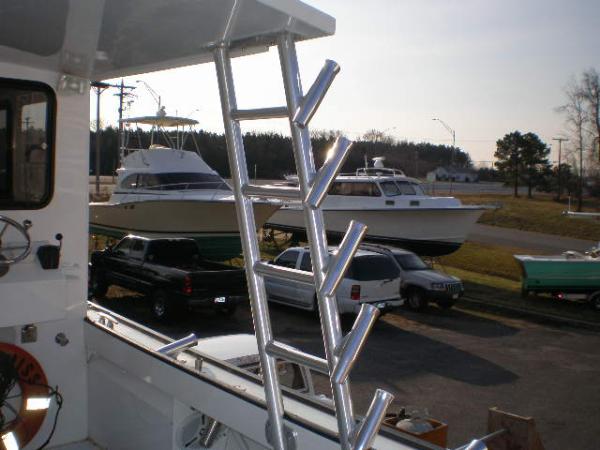

Miss Hattie is lobster hull built for a chesapeake bay charter captain to be able to have a quick, economical, stable and voluminous platform to take guests aboard.  She excels in every way.  The interior is custom molded pieces that were vacuum bagged in ordered to save weight, the salon is raised and has 360 degrees of view.  The V-berth is spacious and comfortable due to the angel foam cushions.  The galley was built to be functional for offshore use.  The cockpit is massive, and has a yeti cooler launcher.  There are plenty of rod holders to go fishing or space to do whatever you'd like.  .

2.5 Years Left on Original Engine Warranty!!!



Print Details »
  • Price: $275,000
  • Model Year: 2010
  • Boat Ref: 3856546
  • Location: Fishing Creek MD, United States
Construction
  • Builder:
  • Designer:
  • Construction: GRP
Measurements
  • Length:
  • Beam: 15' 0"
  • Displacement:
  • Min Draft:
  • Max Draft: 4' 0"
  • Ballast:
Engines
  • Number of Engines: 1
  • Engine(s) Make: Caterpillar
  • Engine Model: C9
  • Engine Year: 2010
  • Engine Fuel Type: Diesel
  • Engine Propeller Type:
  • Engine Hours: 887
Tankage
  • Fuel: 1 x 340 gallons
  • Water: 2 x 340 gallons
  • Holding: 1 x 25 gallons

Specs

Builder: SW boatworks/ Composite Yacht
Designer: Calvin Beal
Hull Shape: Monohull

Electronics

Electronics:

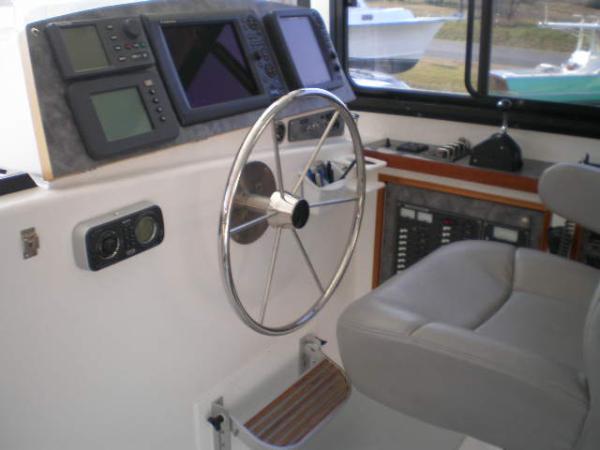

Furuno NavNet 3D 12.1" Multi Function Display

Ultra High Definition Digital Radar- incorporates a 6KW T/R and 4' open array antenna

Furuno 8.4" High Resolution Sunlight Viewable, 256 Color LCD Fish Finder w/ DSP either 600 1000 watts operating at 50 / 200 Khz

1KW Plastic Broadband In-hull Transducer, 10 pin

Furuno Autopilot 4.6 Mono LCD 12 or 24 VDCw/ header sensor with optional 3.6" LCD Display/ Control Unit for Multi Station System

Icom 604 Grey VHF

19' 9db VHF antenna


Plumbing

Fresh Water:

Pump: Ultramax 12v w accum. tank

Hose: 1/2" Trident Tracer

Faucet: Shurflow Shower Faucet Combo

Tanks: 2- 60 Gallon Poly

Fill: Seadog Stainless Steel 1.5"


Raw Water:

Jabsco Cyclone 12V


Sanitation:

Jabsco Standard Electric Flush

Todd 25 Gallon Poly Holding Tank




Electrical

Electrical:

Blue Seas A/C Panel

Blue Sea D/C Panel

Batteries: EV8D-A

Interior Lighting: Seadog Stainless 5" Dome Light

Flood Lights: Hella

Bilge Lights: Seadog Flood

Bilge Pumps: Rule 500gph

Spotlight: Perko 314

Fans: Guest 7.5" 900

Charger: Pro Charge Sportsman SS3

Wiper: AFI1000 kit4







Engine/ Gen set

Driveline:

Caterpillar C-9///575hp

ZF 305A Gear with Electric Shift and trolling.

2.5:1 Ratio Reduction

Aquamet 22 Stainless Shaft 2.5"D

PYI Dripless Shaft Seal

Dynaquad Propellor

340 Gallon Aluminum Fuel Tank

Steering: Marine Hydraulic Engineering


Gen Set:

Onan 5KW



Heating/ Air Conditioning

Heating:

Marine Heat 28,000 BTU12v w/ Defrost

Air Conditioning:

Marvair Marine Self Contained Reverse Cycle Air Conditioner 16,000BTU



Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
